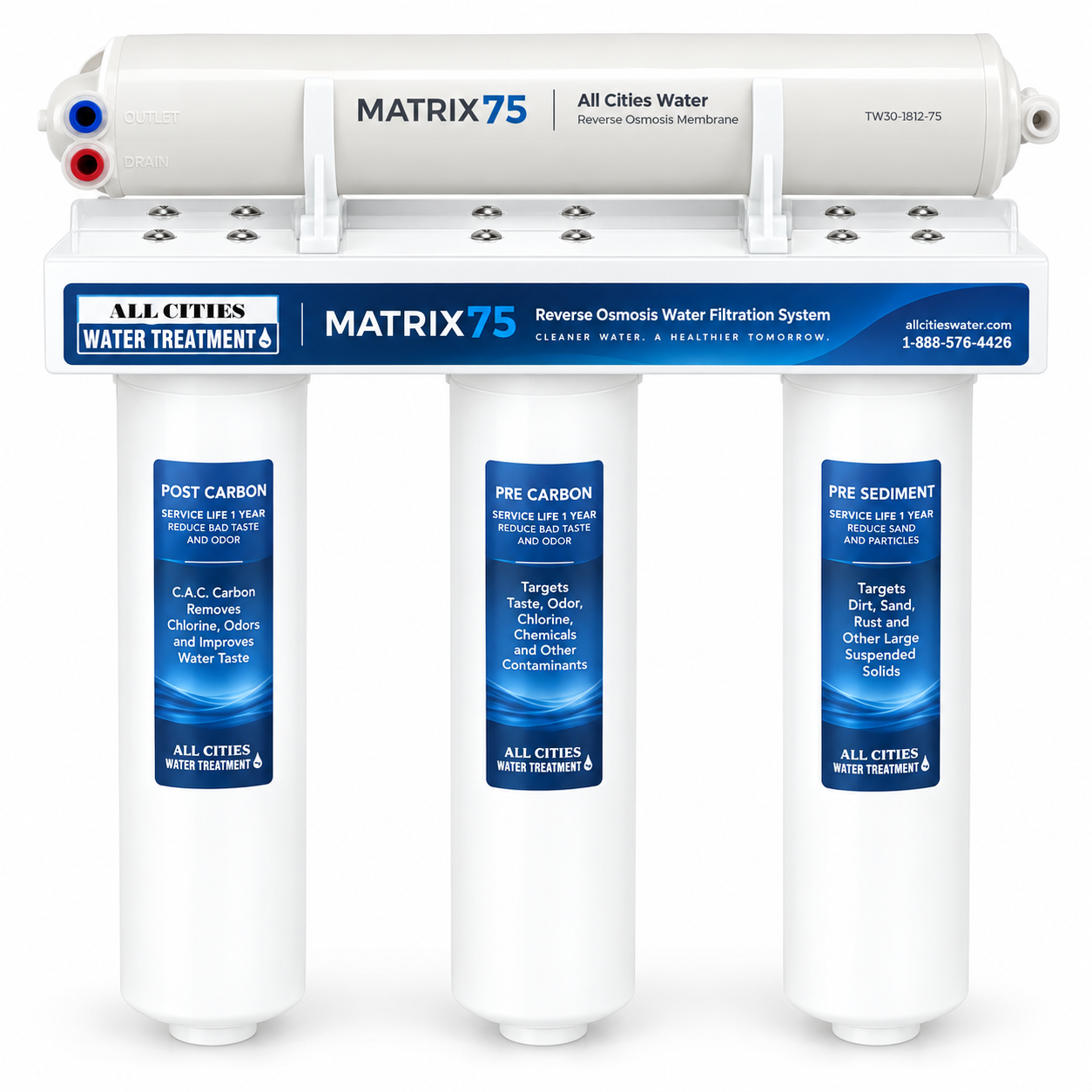

Matrix75 Reverse Osmosis

Built for San Diego and Built to Last

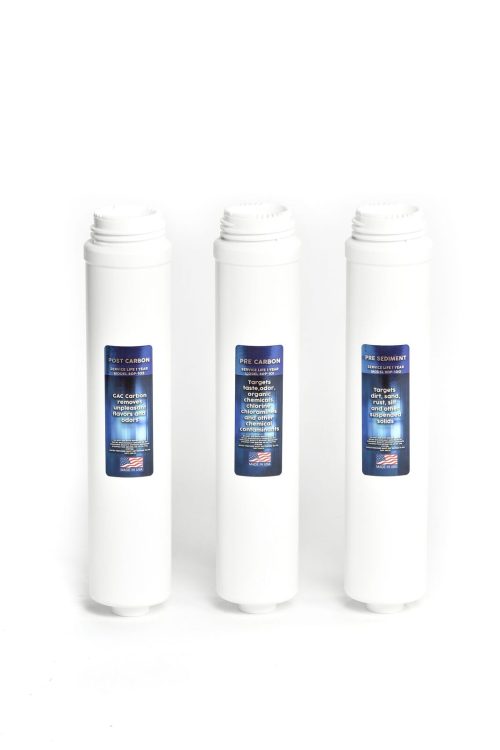

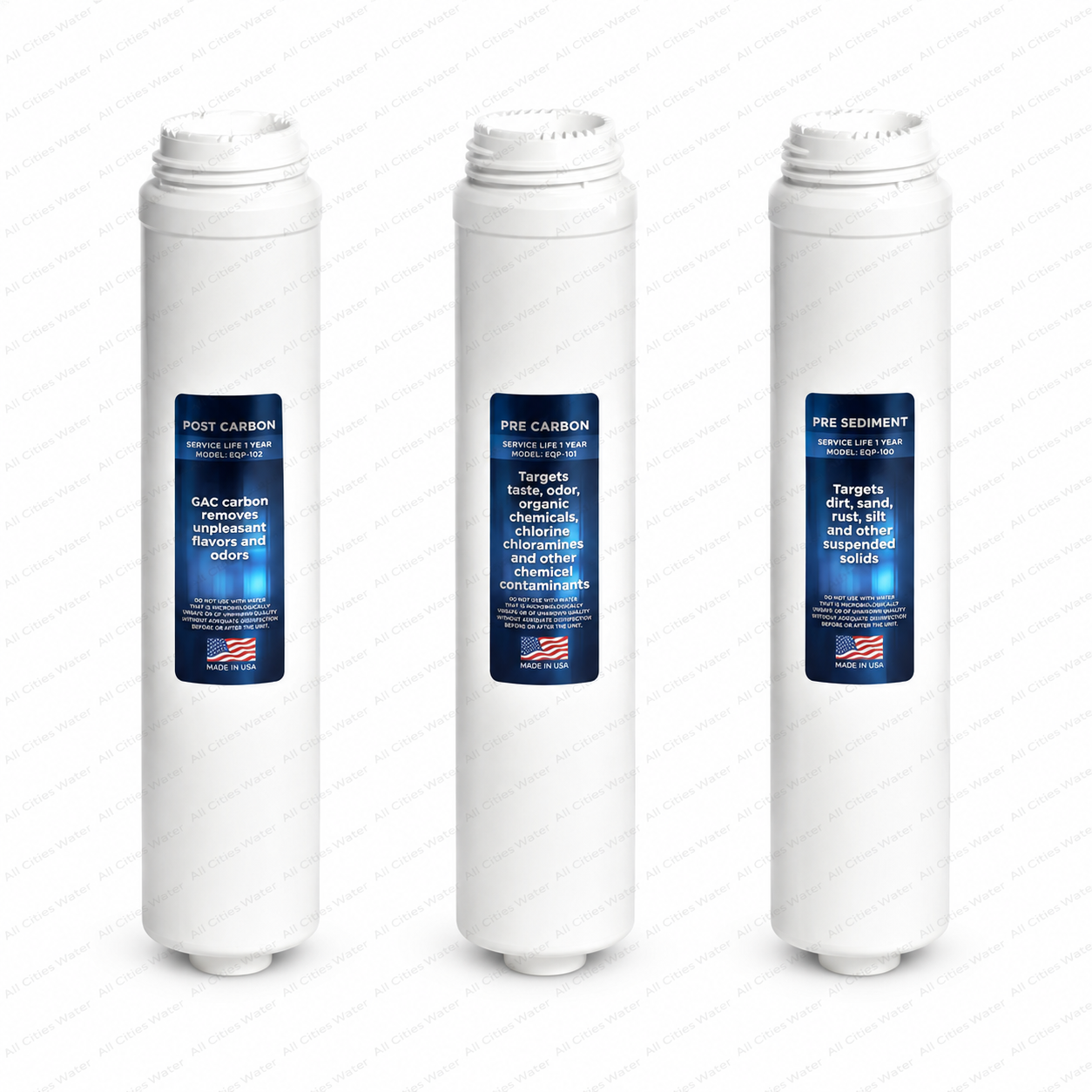

The Matrix75 filters provide a comprehensive 5-stage filtration system to remove impurities from water. The first two stages use sediment and carbon filters to remove dirt, silt, sediment, rust, chlorine, and chloramines. The third stage uses a heavy block carbon filter to reduce chlorine and chloramines. The fourth stage uses a cutting-edge 100% dry membrane to filter up to 97% of the water. The final stage uses a polishing carbon block to improve the taste of the water.

Owners Manual Brochure

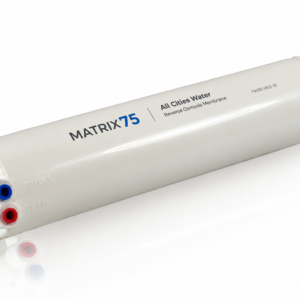

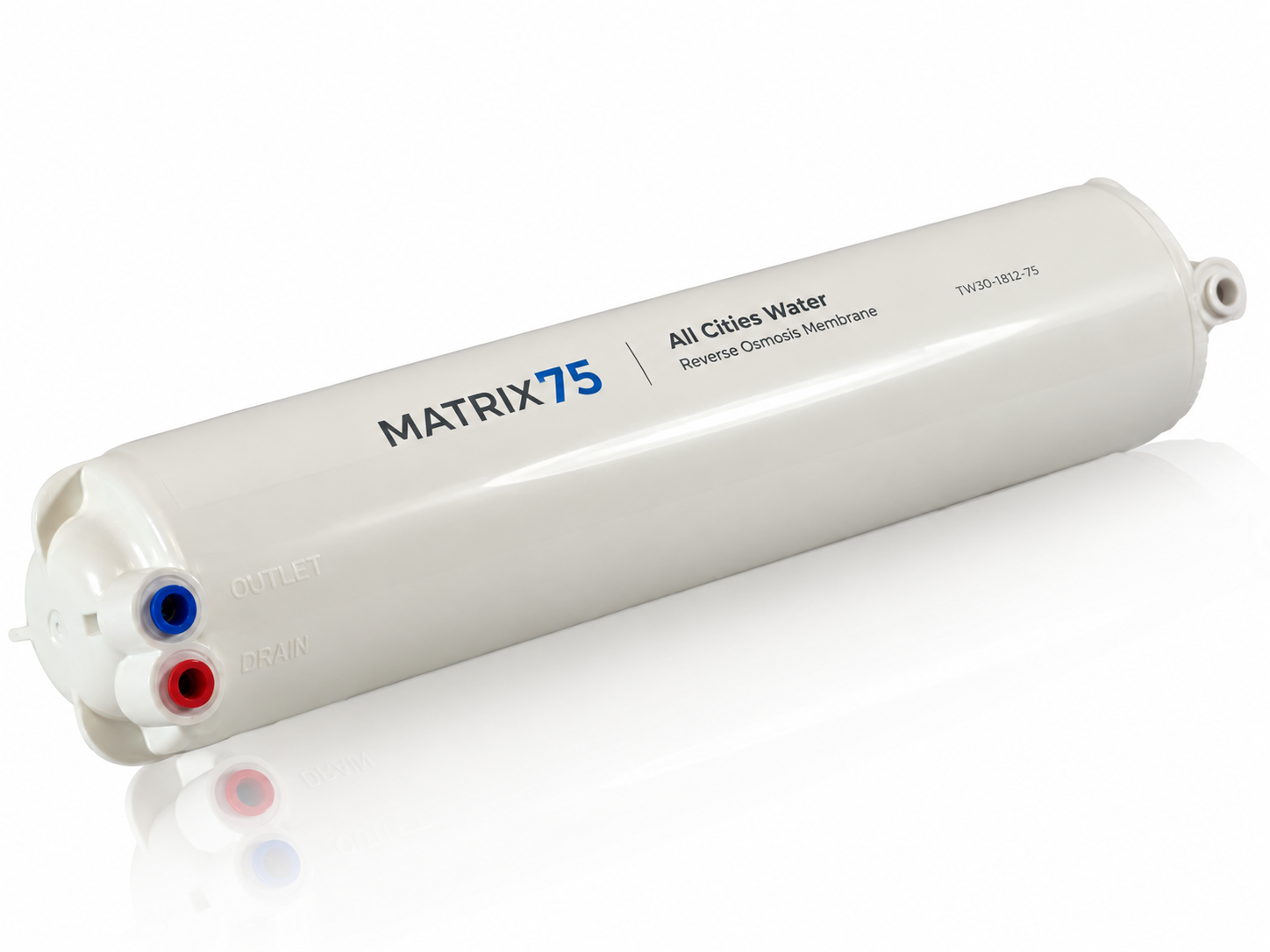

State of the Art Membrane

The Matrix75 Membrane integrates a 100% dry cell membrane to help maximize its lifespan and provide enhanced performance. The membrane boasts a 50% recovery rate while maintaining a compact size.

Hygienically sealed cartridges

Choose the pinnacle of hygiene with our Matrix75 filters featuring state-of-the-art hygienically sealed cartridges. Unlike old-fashioned canister-style filters, our sealed cartridges offer an advanced level of protection against bacterial contamination, ensuring that every drop of water is pristine and safe for consumption. Upgrade your filtration system to experience not only superior purification but also a modern, secure, and hygienic approach to water filtration.

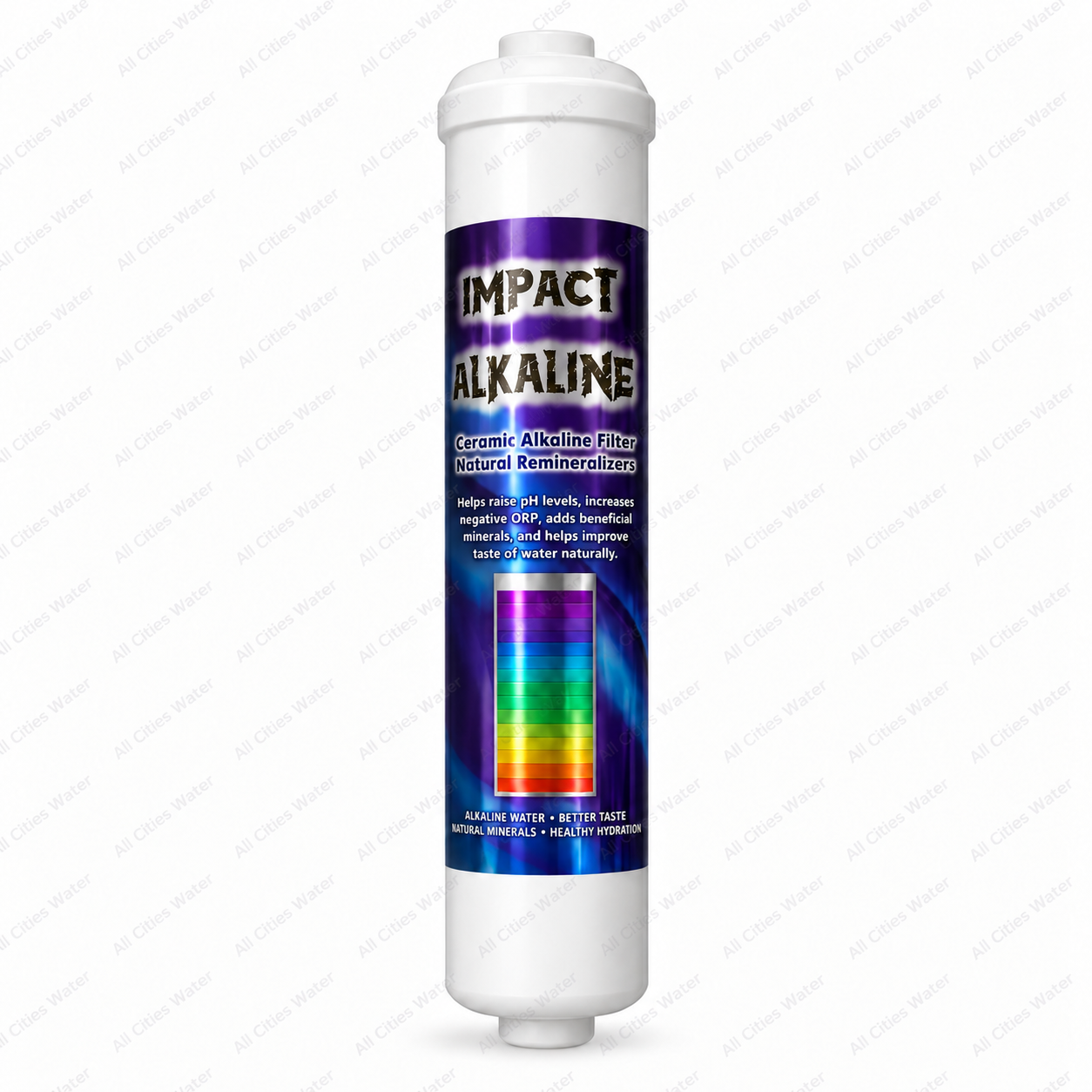

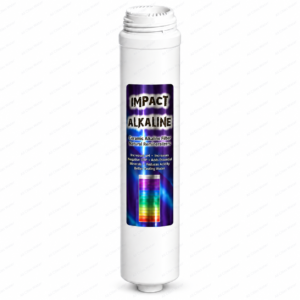

Alkaline Mineral Filter Option

Introducing our advanced Alkaline Water Filter, meticulously crafted with a proprietary blend of Far-Infrared Ceramic, Tourmaline Ceramic, Magnesium Ceramic, Alkaline Ceramic, Calcium Carbonate, Magnesium Oxide, and ORP Ceramic. This innovative filter not only enhances your water’s pH levels and diminishes Oxidation Reduction Potential (ORP) but also infuses vital electrolytes and trace elements, including calcium, magnesium, sodium, potassium, zinc, silica, strontium, selenium, and lithium. Our hygienically sealed cartridges ensure the purity of each sip, preventing bacterial contamination and offering a refreshingly clean and health-conscious hydration experience.

Faucet Styles

Each Matrix75 Drinking System comes with a choice of a stylish, high-quality faucet. There are two styles available with different finishes to match the look of your kitchen faucet. If desired, custom style finishes and faucets can also be provided upon request.

Chrome

Brushed Nickel

Chrome

Brushed Nickel

Matte Black

Brushed Gold

Oil Rubbed Bronze

Upgrades

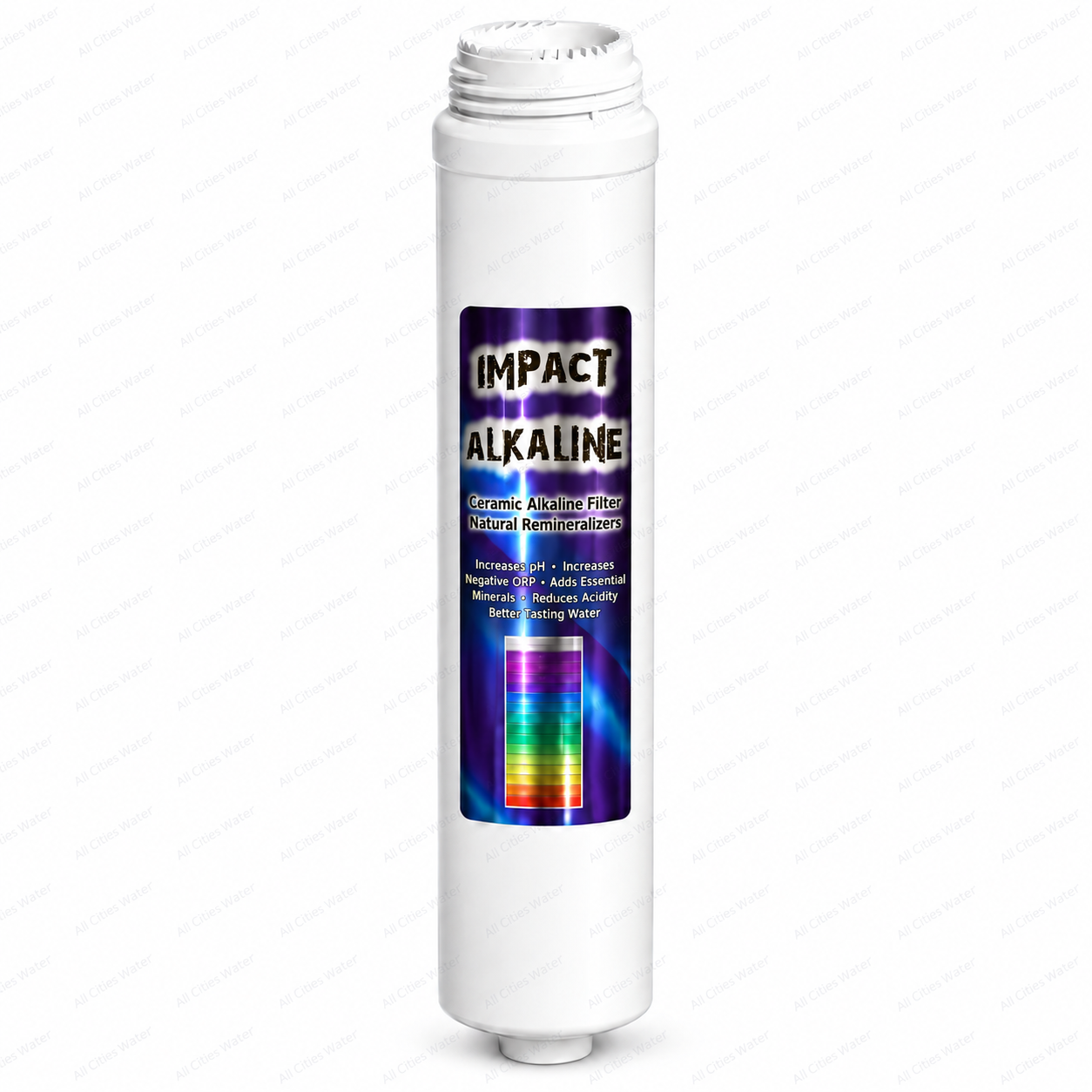

Alkaline Remineralizer

Introducing our advanced Alkaline Water Filter, a meticulously crafted blend of Far-Infrared Ceramic, Tourmaline Ceramic, Magnesium Ceramic, Alkaline Ceramic, Calcium Carbonate, Magnesium Oxide, and ORP Ceramic. This innovative filter not only elevates your water’s pH levels and reduces Oxidation Reduction Potential (ORP) but also infuses essential electrolytes and trace elements, including calcium, magnesium, sodium, potassium, zinc, silica, strontium, selenium, and lithium. Experience the perfect fusion of technology and nature as our Alkaline Water Filter transforms your water into a revitalizing elixir, promoting optimal hydration and well-being with every refreshing sip.

Leak Detector

This upgrade offers an extra sense of security that not only detects leaks and alerts you but also automatically shuts the drinking system off.

Specifications

General

System Type

5 Stage

System Production

75 GPD

Components

Sediment Prefilter

5 Micron Particulate

Carbon Prefilter

Granulated Activated

Membrane

100% Dry Membrane

Waste Ratio

50% Recovery – (1 to 1)

Storage Tank

2.5 Gallons

Faucet

Brush Nickel or Chrome

Dimensions

Height

14.5 “

Width

12 “

Depth

4.75 “

Certifications

NSF/ANSI 58

Operating Conditions

Operating Temperature

33-100 °F

Operating Pressure

45-80 PSI

Recommended Pressure

60 PSI

Rejection Chart

Contaminant	% Reduction	Contaminant	% Reduction
Algae	99.9%	Mercury	93-98%
Aluminum	96-99%	Mold	99.9%
Ameobic Cysts	>99%	Nickel	93-98%
Arsenic	93-98%	Nitrate	85-90%
Asbestoes	>99%	Phosphate	93-98%
Atrazine	95%	Potassium	94-97%
Bacteria	>99%	Protozoa	>99%
Barium	93-98%	Radioactivity	93-98%
Calcium	93-98%	Sediment	>99%
Chloride	95-98%	Selenium	94-96%
Chlorine	99.5%	Silicate	85-90%
Chromate	90-95%	Silver	93-98%
Copper	93-98%	Sodium	90-95%
Cryptosporidium Cysts	99.9%	Strontium	96-98%
Cyanide	90-95%	Sulfate	93-98%
Flouride	95-98%	Thiosulfate	96-99%
Giardia Lamblia Cysts	99.9%	Trihalomethene (THM)	98%
Lead	93-98%	Total Volatile Organics	95%
Manganese	93-98%	Zinc	93-98%
Magnesium	93-98%	2,4-D	95%

This list represents only a few of the contaminants removed or reduced by any 4 or 5-Stage Reverse Osmosis Drinking Water System. Results may vary depending upon water conditions, temperature, pressure and whether proper routine maintenance has been performed on the system at appropriate intervals.

Documentation

Owners Manual Brochure
Frequent Questions

What is Reverse Osmosis or RO?
Reverse Osmosis (RO) is a water filtration process that uses a semi-permeable membrane to remove impurities from water. The process works by applying pressure to water, forcing it through the membrane and leaving behind dissolved salts, minerals, and other contaminants. This results in clean, purified water for drinking, cooking, and other household uses. RO is considered one of the most effective water filtration methods, as it removes up to 99% of impurities and contaminants from water.

What is the difference between filtration and reverse osmosis or RO?
Regular filters exclude (or retain) particles based on size. This sieving process is generally independent of pressure or concentration. Reverse osmosis or RO water purification involves a diffusive mechanism where water forced through a semi-permeable membrane. The separation of pure water from dissolved and suspended solids is achieved via solute concentration, pressure, and water flux rate.

How do I find out what disinfection agents are being used by my local water utility?
If you are curious about how the water from your local water utility is treated, a 1998 Federal mandate requires all municipal water treatment facilities to prepare annual water quality reports called Consumer Confidence Reports. Ask your local water utility for a copy of this report.

How can I measure the contaminants in my drinking water?
We offer a service where we will come out to your home (San Diego County), test your water, and service your equipment. However, we also sell TDS meters that allow a quick overall total dissolved solids test on your water. For more information on TDS visit Wikipedia.org. To schedule us to come out and service your equipment please contact our office.
